Three major halitosis components are hydrogen sulfide, methyl mercaptan, and dimethyl sulfide. The OralChroma measures Volatile Sulfide Components (VSC) in the breath and separates them into the above three components. About 1000 sets of OralChroma have been supplied to dentists, universities, and laboratories in the world since 2002.

Separating halitosis into three major components with high precision

Since the OralChroma uses gas chromatography technology, causes of halitosis can be precisely analyzed to confirm breath odor diagnostics treatment.

OCBL
Simple view
OCPK
Chromatogram view

Simple breath sampling with a supplied syringe

You can freely select where to place the OralChroma without being worried about permanent installation.

Insert the supplied syringe upto the stopper into the oral cavity and hold the syringe between the front teeth. Insert the supplied syringe upto the stopper into the oral cavity and hold the syringe between the front teeth.
Close mouse tightly. Close mouth tightly.
  Wait 30 seconds to one minute to have enough oral gas.
Slowly pull the plunger, push it in and pull it out again before removing the syringe from the mouth. Slowly pull the plunger, push it in and pull it out again before removing the syringe from the mouth.

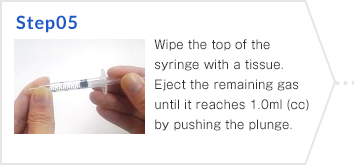

Wipe the top of the syringe with a tissue. Attach the supplied needle to the syringe and eject the remaining gas until it reaches 0.5ml (cc) by pushing the plunge. Wipe the top of the syringe with a tissue. Eject the remaining gas until it reaches 1.0ml (cc) by pushing the plunge.

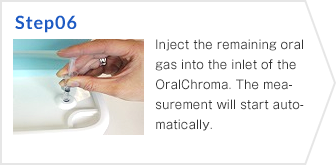

Inject the remaining oral gas into the inlet of the OralChroma. The measurement will start automatically. Inject the remaining oral gas into the inlet of the OralChroma. The measurement will start automatically.

Sophisticated data management software attached (DataManager)

DataManager is a graphical software providing halitosis strength level, patient's data history, etc.

Real time halitosis measurement
Real time halitosis measurement

Halitosis level judgement
Halitosis level judgement

Patient's data history
Patient's data history

OralChroma setup guide/OralChroma operation guide

If no movie is displayed, install the latest Flash Player.
If no movie is displayed, install the latest Flash Player.

Specifications

Product OralChroma(OralChromaTM
Model CHM-2 (Blue: CHM-2-BL, Pink: CHM-2-PK)
Detection method Simple gas chromatography using semiconductor gas sensor
Sample amount 1.0cc
Detection gas Following components included in volatile sulfur compounds:
  1. Hydrogen sulfide
  2. Methyl mercaptan
  3. Dimethyl sulfide
Measuring time 4 minutes
Measuring unit ng/10ml and ppb
Sampling method Manual sampling with a syringe
Operating humidity 80% RH or less (no condensation)
Operating temperature 10 to 30℃
Storage humidity 20 to 90% RH (no condensation))
Storage temperature -20 to 60℃
Power supply 100 to 240V AC、50/60Hz
Power consumption 60VA
Size 280(W)×170(H)×385(D) (mm)
Weight 4kg
External connection USB
Attached software OralChromaTMDataManager

* OralChroma is a measuring device.
